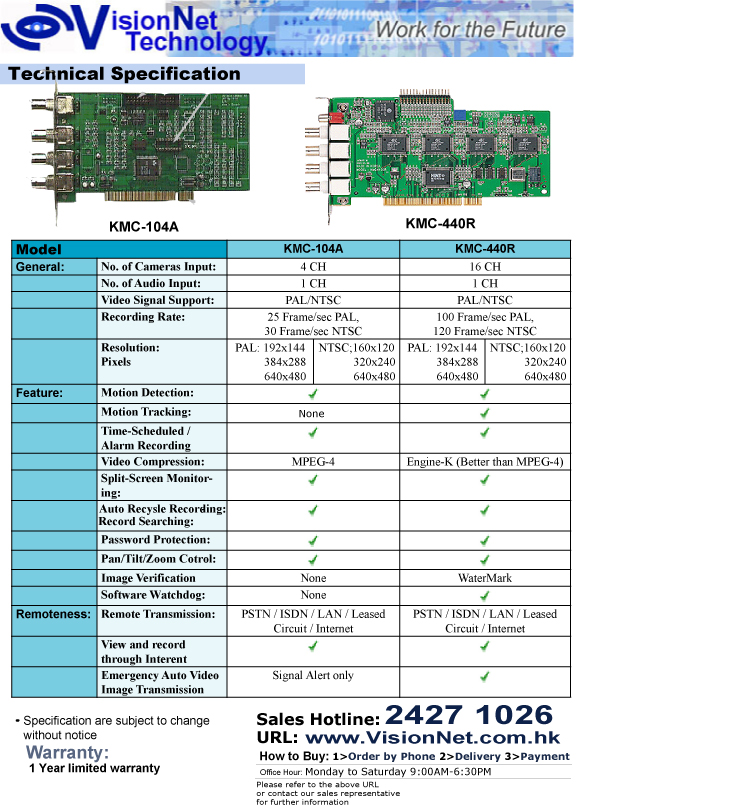

4ch Real time Monitoring
Maximum 25fps/PAL, 30fps/NTSC Frame rate
4ch Video-in
High-Speed Capture board
Camera Input : 1~4ch
1ch Audio Input
External Monitor : 1ch
Resolution :
640x480,320x240,160x120 on NTSC 640x480,384x288,192x144
on PAL
Software: PICO-2000
Window 98/2000
NTSC, PAL Support
Compression: MPEG-4 |
4ch Real time Monitoring
Maximum 100ps/PAL, 120fps/NTSC Frame rate
16ch Video-in High-Speed Capture
board
Camera Input : 1~16ch
1ch Audio Input
External Monitor : 1ch TV-out
Resolution :
640x480,320x240,160x120 on NTSC 768x576,384x288,192x144
on PAL
Software: DigiNet include
Watch-Dog Function
Window 98/2000
NTSC, PAL Support
Compression: Engine-K |
